PRODUCT INFORMATION

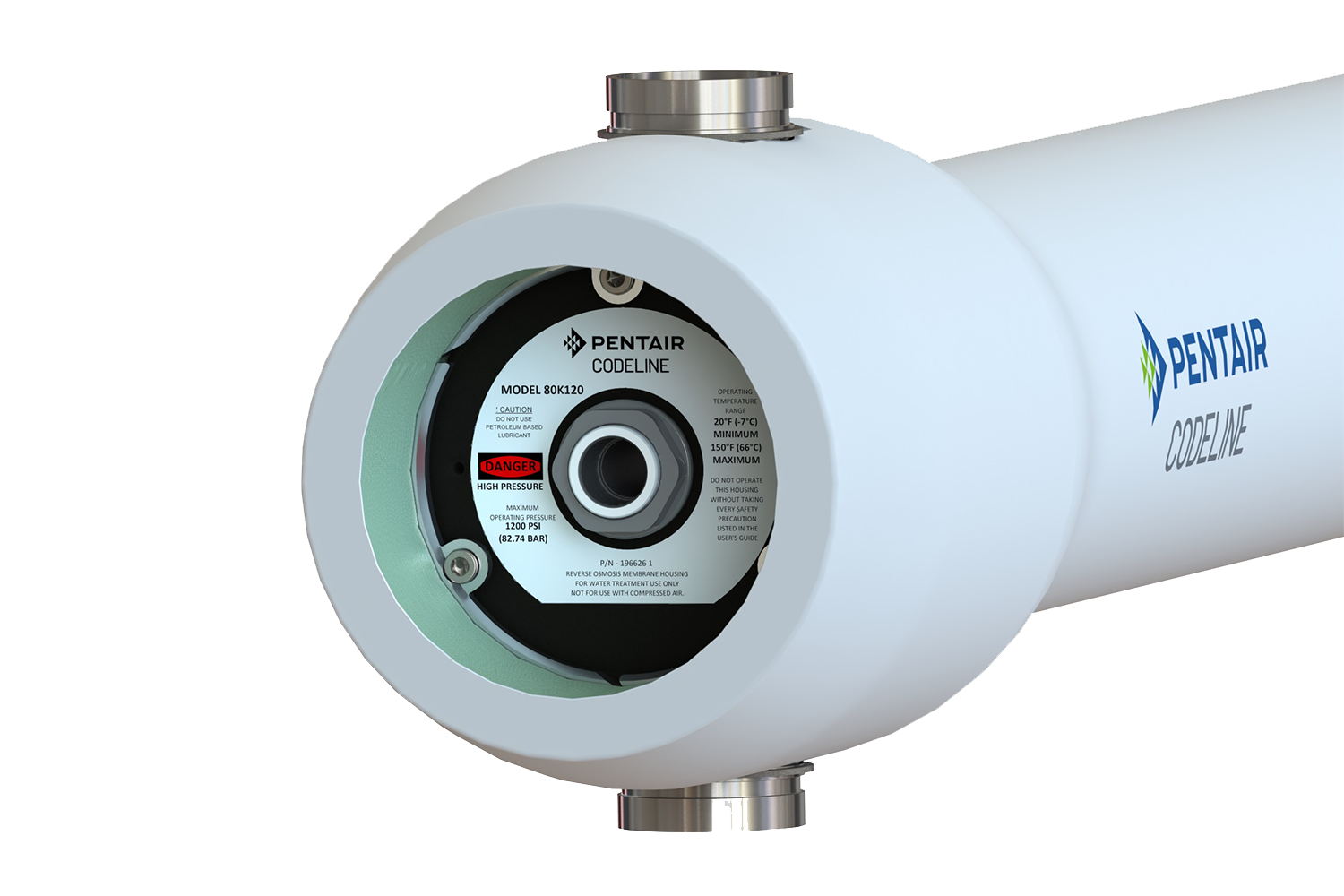

Codeline 80K series is the latest addition to the Pentair Codeline side ported membrane housing models for 8” RO membranes. This FRP membrane housing model has been designed, utilizing the vast Codeline technological expertise in the field and offers a robust product with a higher value proposition to our partners and customers who have helped us lead the market for almost five decades.
80K series is available for operating pressures of 300 psi, 450 psi, 600 psi, 1000 psi and 1200 psi.
Code compliant head
Fail safe shell
Flat sealing
Multiporting
Optimized head locking mechanism
Seamless side ports
- med1
- med2
- med3
- med4
- med5
- med6
FEATURES
- Smooth bore diameter for ease of membrane loading and unloading
- Multiporting option available with 1.5”, 2.0”, 2.5” and 3.0” diameters for connecting vessels to each other
- Quick lock head retention system for quick access to membranes and innovative head locking mechanism as per pressure rating
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Easily replaceable peroxide cured EPDM seals for side ports and head assembly
- Seamless & corrosion resistant side ports for brakish water and super duplex steel ports for sea water applications
- ASME, NSF and CE certified
-
UNIQUE BENEFITS
-
THE 80K MEMBRANE HOUSING HAS 7 UNIQUE BENEFITS
- Leak free, robust pressure vessels, designed as per ASME Section X code for a design life of over 25 years.
- Innovative design using advanced composite materials and state of the art manufacturing for consistently high strength and durability.
- Innovative head locking mechanism as per pressure rating.
- Seamless & corrosion resistant side ports for brackish water and super duplex steel ports for sea water applications
- Easily replaceable peroxide cured EPDM seals for side ports and head assembly
- Smooth bore diameter for ease of membrane loading and unloading
- Aesthetically pleasing smooth and consistent bell area
- Leak free, robust pressure vessels, designed as per ASME Section X code for a design life of over 25 years.
-
APPLICATION AREAS
-
This model is designed to help provide trouble free operations for up to 25 years in high feed flow commercial, municipal and industrial RO applications. To cater to various applications dealing with brackish, high brackish and sea water filtration, these ASME certified pressure vessels are built with advanced epoxy – glass composite.
The pressure vessels offer customization in port sizes, material of construction of key components and flexibility in dimensions to cater to specific requirements. 80K models can accommodate any standard 8” membrane element.
-
SPECIFICATIONS
-
CODELINE 80K30
CODELINE 80K45
CODELINE 80K60
CODELINE 80K100 CODELINE 80K120 Design/ Max. operating pressure 300 PSI/20 Bar
450 PSI/31 Bar
600 PSI/41 Bar
1000 PSI/ 68 bar
1200 PSI/ 82 bar
Max. operating temperature 190°F/ 88°C
190°F/ 88°C
190°F/ 88°C
190°F/ 88°C
150°F/ 66°C
Qualifaction pressure 1800 PSI/124 Bar 2700 PSI/186 Bar
3600 PSI/248 Bar
6000 PSI/413 Bar
7200 PSI/ 496 Bar
Element length 1-8 1-8
1-8
1-8 1-8 Download adapter list DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
