PRODUCT INFORMATION

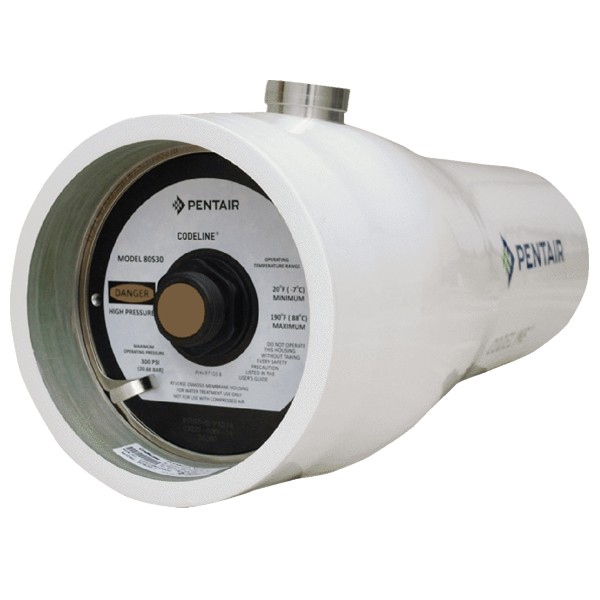

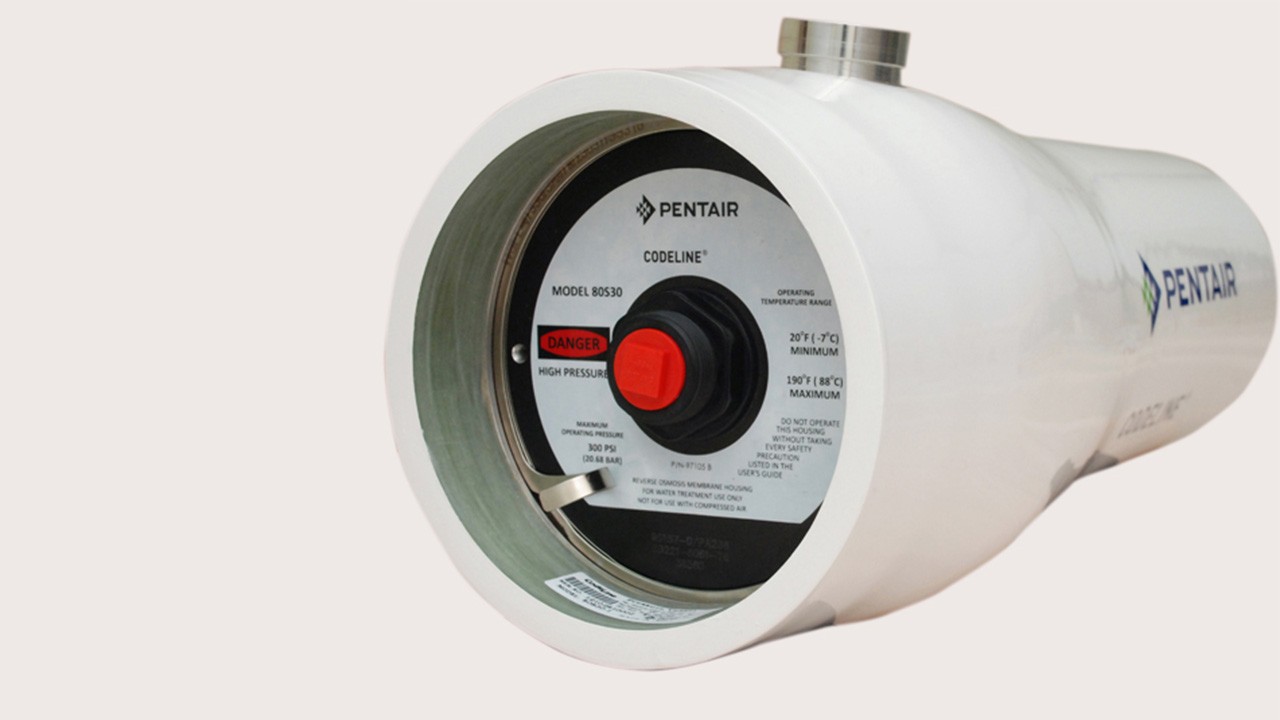

Codeline OCTA 80S series features 8" membrane housings with side entry, ideal for various RO applications. They support pressures from 150 to 1200 PSI and offer multiport connectivity. Made from durable epoxy/glass composite, these housings fit any standard 8" membrane.
Code compliant head
Fail safe shell
Flat sealing
Multiporting
One piece engg thermoplastic head
Quick lock system
Threaded side port
- med1
- med2
- med3
- med4
- med5
- med6
- med7
FEATURES
- Multi-porting options available with 1.5”, 2.0” and 2.5” diameter IPS grooved feed/ concentrate ports
- Quick lock head retention system for quick access
- Exteriors coated with high-gloss polyurethane paint for UV resistance
- Compatible for use in brackish, high brackish and seawater applications for respective pressure ratings
- Non-coded models are CE and NSF certified/ 80S coded also ASME certified
-
UNIQUE BENEFITS
-
The OCTA 80S membrane housing has 8 unique benefits
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
- Easy service and maintenance: The threaded side ports are easy to mount and allow for quick and easy on-site maintenance and replacements
- Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes.
- End plug assembly: Single-piece head assembly for non coded models with high-grade thermoplastic material reduces the number of spares
- Improved head sealing: Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
- Integrally wound locking groove: enhanced end-margin strength for better performance
- Flexibility in permeate piping: Customization of the standard permeate ports for flexible water flows is available for specific requirements
- Ultrapure/sanitary applications: The coded models of the 80S series can optionally accommodate specially designed sanitary connections
- Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
-
PARTS OVERVIEW CODED
-
EXPLODED VIEW
The membrane housing of the coded 80S series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
PARTS TABLE
-
PARTS OVERVIEW NON-CODED
-
EXPLODED VIEW
The membrane housing of the non-coded 80S series is shown in the exploded views below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
PARTS TABLE
-
SPECIFICATIONS
-
Specifications - coded models
CODELINE 80S15 CODELINE 80S30 CODELINE 80S45 CODELINE 80S60 CODELINE 80S100 CODELINE 80S120 Drawing no. 99159 99160 99161 99162 99163 99164 Design/ Max. operating pressure 150 PSI/10 Bar 300 PSI/20 Bar 450 PSI/31 Bar 600 PSI/41 Bar 1000 PSI/68 Bar 1200 PSI/82 Bar Max. operating temperature 190°F/ 88°C 190°F/ 88°C 190°F/ 88°C 190°F/ 88°C 150°F/ 66°C 150°F/ 66°C Qualification pressure 900 PSI/ 62 Bar 1800 PSI/ 124 Bar 2700 PSI/ 186 Bar 3600 PSI/ 248 Bar 6000 PSI/ 413 Bar 7200 PSI/ 496 Bar Element length 1-8 1-8 1-8 1-8 1-8 1-8 Download adapter list Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Download datasheet Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Download drawing DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
Specifications - non coded models
CODELINE 80S15 CODELINE 80S30 CODELINE 80S45 CODELINE 80S60 Drawing no. 99171 99172 99173 99174 Design/ Max. operating pressure 150 PSI/10 Bar 300 PSI/20 Bar 450 PSI/31 Bar 600 PSI/41 Bar Max. operating temperature 190°F/ 88°C 190°F/ 88°C 190°F/ 88°C 190°F/ 88°C Qualification pressure 900 PSI/ 62 Bar 1800 PSI/ 124 Bar 2700 PSI/ 186 Bar 3600 PSI/ 248 Bar Element length 1-8 1-8 1-8 1-8 Download adapter list Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Download datasheet Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Datasheet Codeline OCTA 80S series Download drawing DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
