PRODUCT INFORMATION

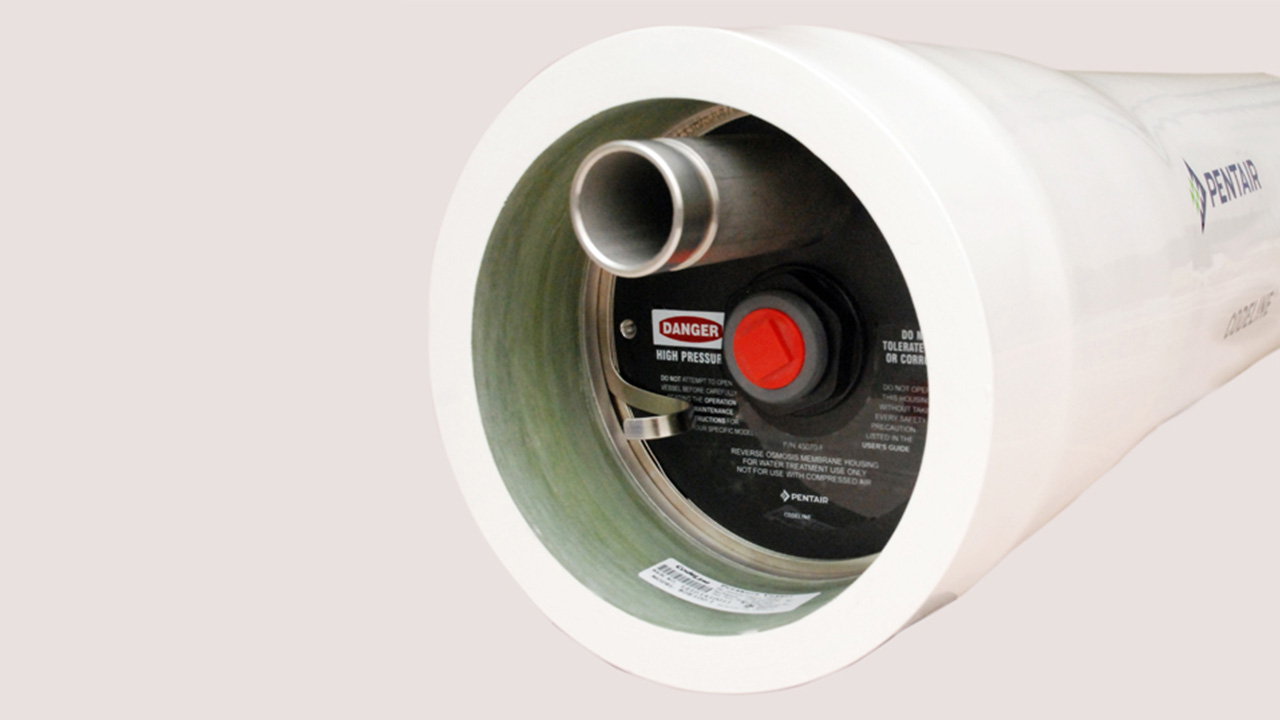

Codeline 80E is membrane housing series of 8” diameter with end entry design. This is used for commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 300 PSI, 450 PSI, 600 PSI, 1000 PSI and 1200 PSI. They are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80E vessels can accommodate any standard 8” membrane element.
Code compliant head
Fail safe shell
High gloss exterior paint
Quick lock system
- med1
- med2
- med3
- med5
FEATURES
- Mirror Finish ID for easy and quick loading and unloading of membranes
- Quick lock head retention system for quick access to membranes
- Exteriors coated with high gloss polyurethane paint for UV resistance
- Head seal is captured, hence doesn’t roll during head assembly fitment
- Compatible for use in brackish, high brackish and seawater applications for respective pressure rating
- Available in ASME certified and CE marked models
-
UNIQUE BENEFITS
-
THE 80E MEMBRANE HOUSING HAS 4 UNIQUE BENEFITS
- Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes
- Improved head sealing: Integration into the sealing plate provides better sealing and avoids head seal roll, reduces the probability of head leaks
- Integrally formed locking groove: enhanced end-margin strength for better performance
- Construction: Superior material used for feed/concentrate port for seawater applications
- Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes
-
PARTS OVERVIEW
-
EXPLODED VIEW
The membrane housing of the 80E series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
PARTS TABLE
-
SPECIFICATIONS
-
CODELINE 80E30
CODELINE 80E45
CODELINE 80E60
CODELINE 80E100 CODELINE 80E120 Drawing no. 99111 99112
99109
99108 99110 Design/ Max. operating pressure 300 PSI/20 Bar 450 PSI/31 Bar
600 PSI/41 Bar
1000 PSI/ 68 bar 1200 PSI/82 Bar Max. operating temperature 120°F/ 49°C 120°F/ 49°C 120°F/ 49°C 120°F/ 49°C 120°F/ 49°C Qualifaction pressure 1800 PSI/124 Bar 2700 PSI/186 Bar
3600 PSI/248 Bar
6000 PSI/413 Bar 7200 PSI/496 Bar Element length 1-8 1-8
1-8
1-8 1-8 Download adapter list Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings
Adapter list 8 inch membrane housings
Adapter list 8 inch membrane housings Adapter list 8 inch membrane housings Download datasheet Datasheet Codeline 80E series
Datasheet Codeline 80E series
Datasheet Codeline 80E series
Datasheet Codeline 80E series Datasheet Codeline 80E series Download drawing DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD DOWNLOAD Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels
Older products: click here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
