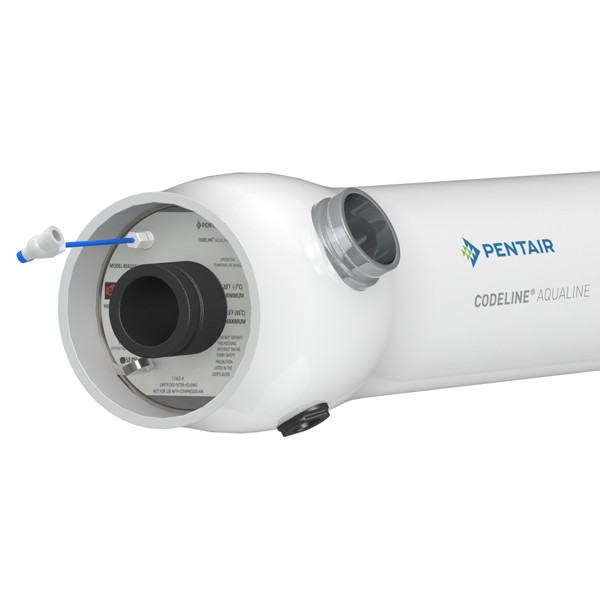

Aqualine housing 80AQ15-60
Aqualine cartridge - example
- med1
- med2
FEATURES
- High flow filtration with a wide range of cartridge micron rating to suit your application
- High-performance pleated media filtration technology
- Long lasting rugged FRP housings from Codeline, available in 150 & 300 psi pressure rating
- ASME complaint FRP housings for critical applications
- Labor-saving quick module change
- Can be installed vertically and horizontally
-
TYPICAL USE
-
Aqualine Housings
Durable Construction: Aqualine housings are sturdy 8” diameter FRP units known for their robust build and enduring performance. They deliver superior flow rates and offer a cost-effective alternative to steel equivalents.
Aqualine Pleated Cartridges
High Capacity Design: These 6.5” diameter, 60” long pleated cartridges are crafted from superior polypropylene media. Their outside-in flow design ensures maximum flow rates with minimal pressure drop, reducing cartridge replacement costs and labor.
Cost and Time Efficiency
Aqualine saves time and money through vertical space efficiency and features a quick-change design. Cartridges can be replaced within minutes, keeping systems operational and eliminating downtime costs.The time to change an Aqualine cartridge with a flow rate of 150 gpm is typically 5 minutes, versus 30 minutes for standard multi-round housings with the same flow rates. A single element can be changed while the system stays online, eliminating the additional cost associated with downtime.
-
SCOPE
-
Pentair Aqualine Housings
- Rugged 8" FRP shell complies with ASME-X
- Qualification pressure = 6X operating pressure
- Light weight construction for easy handling
- Can be installed vertically or horizontally, as convenient
Pentair Aqualine Cartridges
- Made from high performance polypropylene media
- 6.75"pleated construction features 15 times more surface area
- Extended surface area provides long life & fewer change-outs
- Outside-in design for high flows at low differential pressures
-
FIELDS OF APPLICATION
-
Pentair Aqualine Housings and Catridges are designed for pre-filtration in industrial RO applications. The media filtration modules offer durable performance and are used across various industries such as desalination, electronics, oil & gas, chemicals, pharmaceuticals, magnetic media, ink, cosmetics, photography, bleach, healthcare, hospitality, and food & beverage.
Specifications HOUSINGS
| 80AQ15-60 (Non coded) | 80CF15-60 (Non coded) | 80CF15-60 (Code Compliant) | 80CF30-60 (Code Compliant) | |
| Drawing number | 200268 | 17028 | 17036 | 17038 |
| Design/ Max. operating pressure | 150 PSI/10 Bar | 150 PSI/10 Bar | 150 PSI/10 Bar | 300 PSI/20 Bar |
| Max. operating temperature | 113 °F /45 °C | 140 °F /60 °C | 140 °F /60 °C | 140 °F /60 °C |
| Qualification pressure | 900 PSI/62 Bar | 900 PSI/62 Bar | 900 PSI/62 Bar | 1800 PSI/124 Bar |
| Element length | 60" | 60" | 60" | 60" |
| Download drawing | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD |
| Download datasheet | DOWNLOAD | DOWNLOAD | DOWNLOAD | DOWNLOAD |
