Codeline

80S series

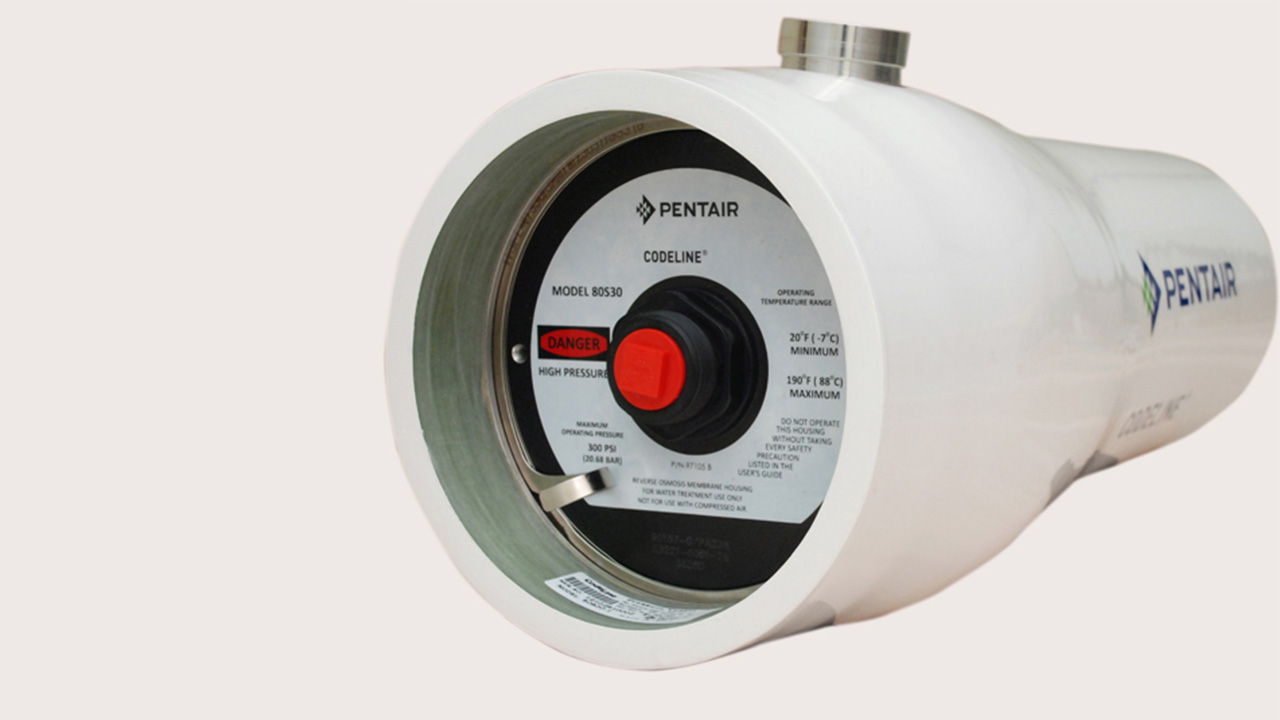

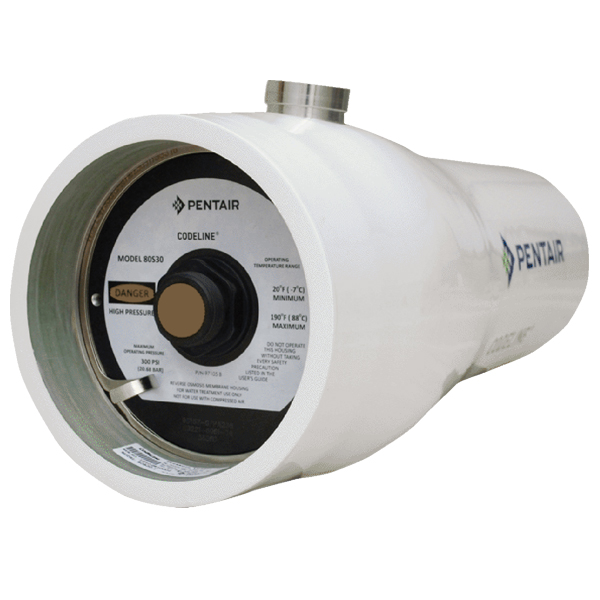

Codeline OCTA 80S is membrane housing series of 8” diameter with side entry design equipped with OCTA Technology. This is used for commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 150 PSI, 300 PSI, 450 PSI, 600 PSI,1000 PSI and 1200 PSI with multiport connectivity. These are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80S vessels can accommodate any standard 8” membrane element.

Interested?

Pentair Codeline - Code compliant head Pentair Codeline - Flat safe shell Pentair Codeline - Flat sealing Pentair Codeline - Multiporting Pentair Codeline - One piece head thermoplastic Pentair Codeline - Quick lock system Pentair Codeline - Threaded side port
Code compliant head
Flat safe shell
Flat sealing
Multiporting
One piece engg thermoplastic head
Quick lock system
Threaded side port

Features

  • Mirror Finish ID for easy and quick loading and unloading of membranes
  • Multi-porting options available with 1.5”, 2.0” and 2.5” diameter IPS grooved   feed/ concentrate ports for connecting vessels to each other
  • Quick lock head retention system for quick access to membranes
  • Exteriors coated with high-gloss polyurethane paint for UV resistance
  • Captured head seal prevents roll during head assembly fitting
  • Compatible for use in brackish, high brackish and seawater applications for respective pressure ratings
  • Non-coded vessel models available for pressures up to 600 PSI
  • CodeLine 80S non-coded models are CE and NSF certified
  • CodeLine 80S coded models are ASME, CE and NSF certified
  • DWI – for series

Unique benefits

The OCTA 80S membrane housing has 8 unique benefits

  • Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
  • Easy service and maintenance: The threaded side ports are easy to mount and allow for quick and easy on-site maintenance and replacements
  • Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes.
  • End plug assembly: Single-piece head assembly for non coded models with high-grade thermoplastic material reduces the number of spares


  • Improved head sealing: Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
  • Integrally wound locking groove: enhanced end-margin strength for better performance
  • Flexibility in permeate piping: Customization of the standard permeate ports for flexible water flows is available for specific requirements
  • Ultrapure/sanitary applications: The coded models of the 80S series can optionally accommodate specially designed sanitary connections

Parts overview coded

EXPLODED VIEW

The membrane housing of the coded 80S series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.

Pentair Codeline - Exploded view of the Codeline 80S series

PARTS TABLE

Pentair Codeline - Exploded view and parts table

Parts overview non-coded

EXPLODED VIEW

The membrane housing of the non-coded 80S series is shown in the exploded views below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.

Pentair Codeline - Exploded view of the Codeline non coded 80S series

PARTS TABLE

Pentair Codeline - Exploded view and parts table

Specifications - coded models

CODELINE 80S15

Drawing no.
99159
Design/ Max. operating pressure
150 PSI/10 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
900 PSI/ 62 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S15

CODELINE 80S30

Drawing no.
99160
Design/ Max. operating pressure
300 PSI/20 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
1800 PSI/ 124 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S30

CODELINE 80S45

Drawing no.
99161
Design/ Max. operating pressure
450 PSI/31 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
2700 PSI/ 186 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S45

CODELINE 80S60

Drawing no.
99162
Design/ Max. operating pressure
600 PSI/41 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
3600 PSI/ 248 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S60

CODELINE 80S100

Drawing no.
99163
Design/ Max. operating pressure
1000 PSI/68 Bar
Max. operating temperature
150°F/ 66°C
Qualification pressure
6000 PSI/ 413 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S100

CODELINE 80S120

Drawing no.
99164
Design/ Max. operating pressure
1200 PSI/82 Bar
Max. operating temperature
150°F/ 66°C
Qualification pressure
7200 PSI/ 496 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80S series
Download drawing
Codeline drawing 80S120
