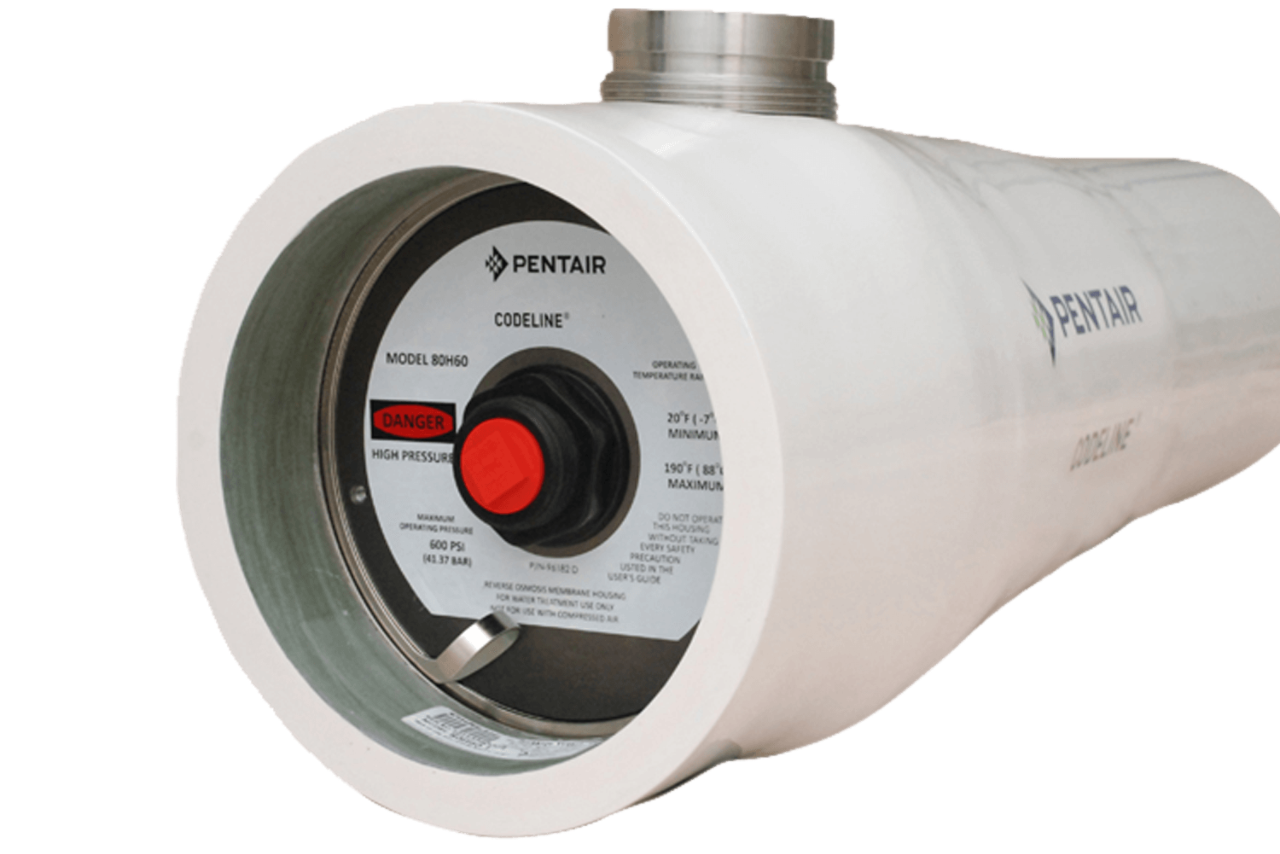

Codeline OCTA 80H is membrane housing series of 8” diameter with side entry design equipped with OCTA Technology. This is used for high feed flow commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 150 PSI, 300 PSI, 450 PSI, 600 PSI, 1000 PSI and 1200 PSI with multiport connectivity.  These are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80H vessels can accommodate any standard 8” membrane element.

Interested?

Pentair Codeline - Code compliant head Pentair Codeline - Flat safe shell Pentair Codeline - Flat sealing Pentair Codeline - Multiporting Pentair Codeline - Quick lock system Pentair Codeline - Threaded side port
Code compliant head
Flat safe shell
Flat sealing
Multiporting
Quick lock system
Threaded side port

Features

  • Mirror finish ID for easy and quick loading and unloading of membranes
  • Multiporting option available with 1.5”, 2.0”, 2.5” and 3.0” diameters for connecting vessels to each other
  • Quick lock head retention system for quick access to membranes
  • Exteriors coated with high-gloss polyurethane paint for UV resistance
  • Head seal is captured, hence doesn’t roll during head assembly fitment
  • Compatible for using in brackish, high brackish and sea water applications for respective pressure ratings
  • ASME, NSF and CE certified

Unique benefits

The OCTA 80H membrane housing has 6 unique benefits

  • Minimized leakage: The integrated octagonal shape provides a flat surface for superior and reliable side port sealing
  • Easy service and maintenance: The threaded side ports are easy to mount and allow for quick and easy on-site maintenance and replacements.
  • Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes


  • Improved head sealing: Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
  • Integrally wound locking groove: enhanced end-margin strength for better performance
  • Flexibility in permeate piping: Customization of the standard permeate ports for flexible water flows is available for specific requirements

Parts overview

EXPLODED VIEW

The membrane housing of the 80H series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.

Pentair Codeline - Exploded view of the Codeline 80H series

PARTS TABLE

Pentair Codeline - Exploded view and parts table

Specifications

CODELINE 80H15

Drawing no.
99165
Design/ Max. operating pressure
150 PSI/10 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
900 PSI/62 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H15

CODELINE 80H30

Drawing no.
99166
Design/ Max. operating pressure
300 PSI/20 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
1800 PSI/124 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H30

CODELINE 80H45

Drawing no.
99167
Design/ Max. operating pressure
450 PSI/31 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
2700 PSI/186 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H45

CODELINE 80H60

Drawing no.
99168
Design/ Max. operating pressure
600 PSI/41 Bar
Max. operating temperature
190°F/ 88°C
Qualification pressure
3600 PSI/248 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H60

CODELINE 80H100

Drawing no.
99169
Design/ Max. operating pressure
1000 PSI/68 Bar
Max. operating temperature
150°F/ 66°C
Qualification pressure
6000 PSI/413 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H100

CODELINE 80H120

Drawing no.
99170
Design/ Max. operating pressure
1200 PSI/82 Bar
Max. operating temperature
150°F/ 66°C
Qualification pressure
7200 PSI/496 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline OCTA 80H series
Download drawing
Codeline drawing 80H120

Quality: read more about our quality certificates.
Multiporting: learn more about multiporting with Codeline pressure vessels.
Older productsclick here for more information about older Codeline products.
User Guides: click here for all the Codeline User Guides.
