Accurate Air Content Measurement for Packaged Beverages

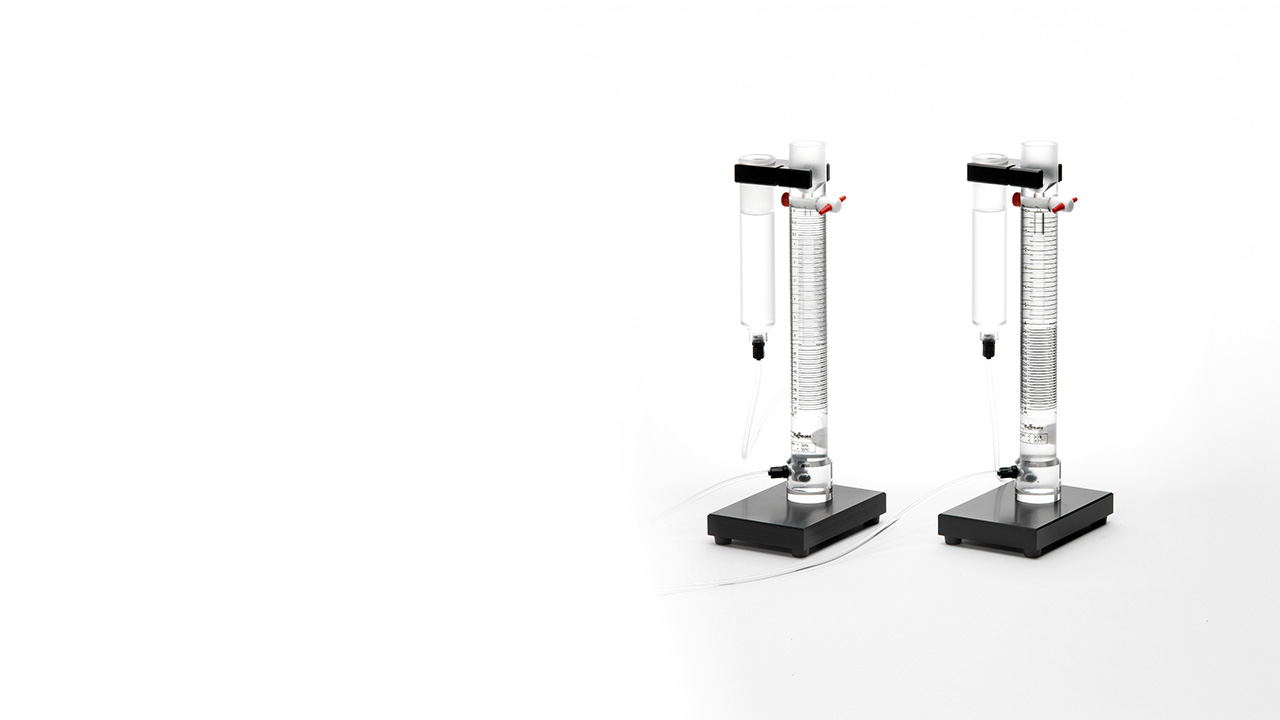

The Haffmans IAM is a reliable instrument used to determine the air content in the headspace and the total air content in carbonated beverages. It works in combination with the Inpack CO₂ Calculator or Inpack CO₂ Meter, using a proven method based on CO₂ absorption by caustic.
Benefits
- Precise quality control: Accurately measures headspace and total air content.
- Maintenance-free: Simple, durable design with no moving parts.
- Cost-effective: Reduces the risk of oxygen-related flavor degradation and shelf-life issues.
- Flexible options: Available in two models for different beverage types.
-
FUNCTIONAL DESCRIPTION
-
The container is depressurized, and the released gas is fed into the IAM. CO₂ is absorbed by caustic, and the remaining air is collected in a measuring burette. The air volume is then read directly in milliliters.
The device is available in two executions:
- Type IAM-20 has a measuring range of 0-20 ml, with higher accuracy in the low range, and is typically used for carbonated beverages with low air content, such as beer.
- Type IAM-36 measures the range of 0-36 ml and is typically used for carbonated beverages with a higher air content, such as soft drinks.
- Type IAM-20 has a measuring range of 0-20 ml, with higher accuracy in the low range, and is typically used for carbonated beverages with low air content, such as beer.
-
FIELDS OF APPLICATION
-
- Laboratory: Use in combination with Pentair Haffmans’ Inpack 2000 CO₂ Calculator or Meter.
- Breweries and soft drink production.
Find the right instrument for your needs with myHaffmans
myHaffmans is our quality control selection tool, designed to help you choose the right instrument for your specific needs.
Try it out for yourself!
Downloads
| Title | Download PDF | |
| Product Leaflet | Haffmans IAM | Download |
| Product Leaflet | Haffmans IAM (French) | Download |
| Product Leaflet | Haffmans IAM (Portuguese) | Download |
| Product Leaflet | Haffmans IAM (Spanish) | Download |
| Product Overview Brochure | Haffmans Quality Control Equipment | Download |
| Technical documentation | Request Product-Specific Technical Documentation | Send Us Your Request |
