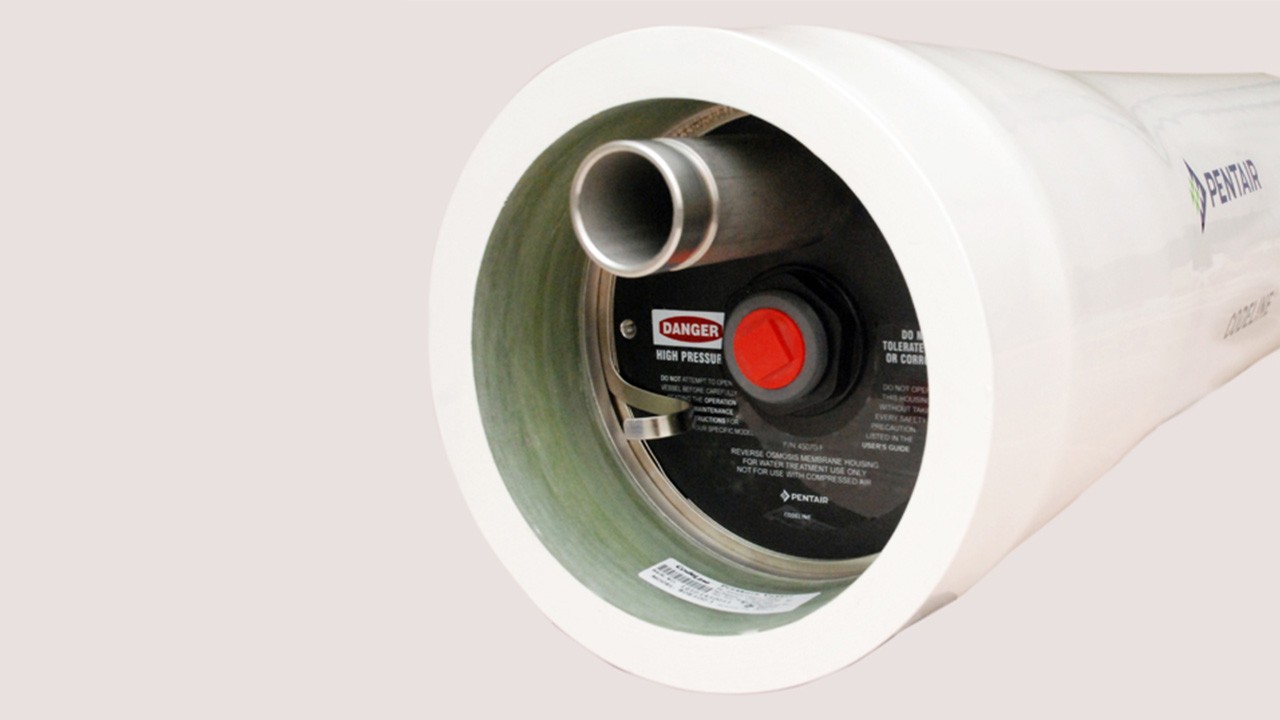

Codeline 80E is membrane housing series of 8” diameter with end entry design. This is used for commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 300 PSI, 450 PSI, 600 PSI, 1000 PSI and 1200 PSI. They are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Codeline 80E vessels can accommodate any standard 8” membrane element.

Interested?

Pentair Codeline - Code compliant head Pentair Codeline - Fail safe shell Pentair Codeline - High gloss exterior paint Pentair Codeline - Quick lock system
Code compliant head
Fail safe shell
High gloss exterior paint
Quick lock system

Features

  • Mirror Finish ID for easy and quick loading and unloading of membranes
  • Quick lock head retention system for quick access to membranes
  • Exteriors coated with high gloss polyurethane paint for UV resistance
  • Head seal is captured, hence doesn’t roll during head assembly fitment
  • Compatible for use in brackish, high brackish and seawater applications for respective pressure rating
  • Available in ASME certified and CE marked models

unique benefits

The 80E membrane housing has 4 unique benefits

  • Quick locking mechanism: The user-friendly quick lock system eliminates the need for special removal tools and allows quick access to the membranes
  • Improved head sealing: Integration into the sealing plate provides better sealing and avoids head seal roll, reduces the probability of head leaks


  • Integrally formed locking groove: enhanced end-margin strength for better performance
  • Construction: Superior material used for feed/concentrate port for seawater applications

parts overview

EXPLODED VIEW

The membrane housing of the 80E series is shown in the exploded view below. The parts table contains an explanation of the numbers. Clicking on the picture opens a PDF file containing both the exploded view and the parts table.
Pentair Codeline - Exploded view of the Codeline 80E series

PARTS TABLE

Pentair Codeline - Exploded view and parts table

Specifications

CODELINE 80E30

Drawing no.
99111
Design/ Max. operating pressure
300 PSI/20 Bar
Max. operating temperature
120°F/ 49°C
Qualification pressure
1800 PSI/124 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline 80E series
Download drawing
Codeline drawing 80E30

CODELINE 80E45

Drawing no.
99112
Design/ Max. operating pressure
450 PSI/31 Bar
Max. operating temperature
120°F/ 49°C
Qualification pressure
2700 PSI/186 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline 80E series
Download drawing
Codeline drawing 80E45

CODELINE 80E60

Drawing no.
99109
Design/ Max. operating pressure
600 PSI/41 Bar
Max. operating temperature
120°F/ 49°C
Qualification pressure
3600 PSI/248 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline 80E series
Download drawing
Codeline drawing 80E60

CODELINE 80E100

Drawing no.
99108
Design/ Max. operating pressure
1000 PSI/68 Bar
Max. operating temperature
120°F/ 49°C
Qualification pressure
6000 PSI/413 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline 80E series
Download drawing
Codeline drawing 80E100

CODELINE 80E120

Drawing no.
99110
Design/ Max. operating pressure
1200 PSI/82 Bar
Max. operating temperature
120°F/ 49°C
Qualification pressure
7200 PSI/496 Bar
Element length
1-8
Download adapter list
Adapter list 8 inch membrane housings
Download datasheet
Datasheet Codeline 80E series
Download drawing
Codeline drawing 80E120
